YOU DOWN WITH
OOP?
Women In Technology
Lecturer Gant Laborde
& YOU!
Who are you?
Today Schedule
- 10:00 - 10:15 - Check in and get coffee
- 10:15 - 11:30 - Workshop
- 11:30 - 11:50 - Break
- 11:50 - 12:50 - Workshop
- 12:50 - 1pm - Final remarks, Survey
Mission
To not only show Object Oriented Programming, but to provide the reasoning and feel the solution actually solve a real world problem for software as a paradigm.
Overview
- Other Options
- Advantages of OOP
- Basics
- Inheritance
- Polymorphism
- Abstraction
WARNING:
JavaScript in this workshop is ES6
Procedural Programming
Procedural Programming
Top Down
What's the Drawback?
Software Reactivity
- Maintaining
- Automatic Memory Management
- No security of code
- No teamwork in code
- Maintaining
- Automatic Memory Management
- No security of code
- No teamwork in code
Imagine the above as an english essay.
How do we solve this?
Object Oriented Programming
A strategy for breaking code into parts.
The Classic OOP Car
Let's Make it Happen
Encapsulation
Procedural
OOP
Functional
OOP oh so Classy
Classes & Objects
Objects are instances of classes
Tire Class
Tire Objects
Let's Code

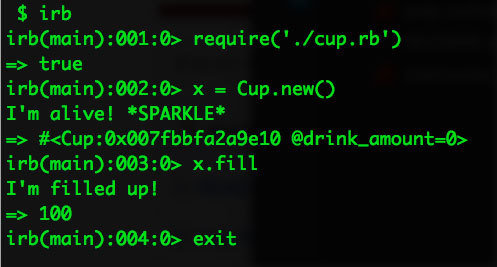

Ruby
class Cup
def initialize
puts "I'm alive! *SPARKLE*"
@drink_amount = 0
end
def fill
puts "I'm filled up!"
@drink_amount = 100
end
def empty
puts "ALL GONE!"
@drink_amount = 0
end
def quantity
puts @drink_amount
@drink_amount
end
end
Constructor
Class
Methods
Let's Code
Java
Constructor
Class
Methods
public class Cup {
public int drinkAmount = 0;
public Cup() {
System.out.println("I'm alive! *SPARKLE*");
drinkAmount = 0;
}
public void fill () {
System.out.println("Fill'er up!");
drinkAmount = 100;
}
public void empty () {
System.out.println("Dump it!");
drinkAmount = 0;
}
public int quantity () {
System.out.println(drinkAmount.toString() + " is left");
return drinkAmount;
}
}
Let's Code
JavaScript ES6
Constructor
Class
Methods
class Cup {
constructor() {
console.log("I'm alive!")
this.drinkAmount = 0
}
fill () {
console.log('Cup fillled up')
this.drinkAmount = 100
}
empty () {
console.log('Cup emptied')
this.drinkAmount = 0
}
quantity () {
console.log(`${this.drinkAmount} drink left`)
return this.drinkAmount
}
}
Let's Code
JavaScript ES6
JS Bin
https://jsbin.com/buwucuk/1/edit?js,console
Let's Code
Ruby FYI
Now you!
use JSBin and make an object
Make them different!
Static / Class Methods
Functionality built into design
What does this give us?
Volume Helper
Ruby
def self.volume radius, height
puts Math::PI * radius**2 * height
end
Volume Helper
JavaScript ES6
static volume(radius, height) {
const volume = Math.PI * Math.pow(radius, 2) * height
console.log(volume)
}
https://jsbin.com/buwucuk/3/edit?js,console
Inheritance
Taking on the functionality of an existing class
What does this give us?
Inheritance
Taking on the functionality of an existing class
import disney.pocahontas.plot;
public class Avatar extends pocahontas {
public plot() {
setTimeEra("Future");
setPlanet("NotEarth");
}
}
Inheritence
Cup Example
With Ruby
class MojoCup < Cup
def initialize
super
puts "Welcome to Mojo Coffee!"
end
end
Inheritence
Cup Example
With JavaScript ES6
class MojoCup extends Cup {
constructor() {
super()
console.log('Welcome to Mojo')
}
}
https://jsbin.com/buwucuk/2/edit?js,console
Base Class
Superclass
Inherited Class
Subclass
Now You Try
With your JSBin Create a class and extend it!
What happens when...
a subclass implements the same method as its superclass?
Polymorphism
Objects Behaving
let shape = new Square()
let shape = new Triangle()
shape.draw()
What does this give us?
Others?
- Cups
- Car Doors
- Animals
Abstraction Philosophy
Circle
A cirlce is a geometric shape with known properties.

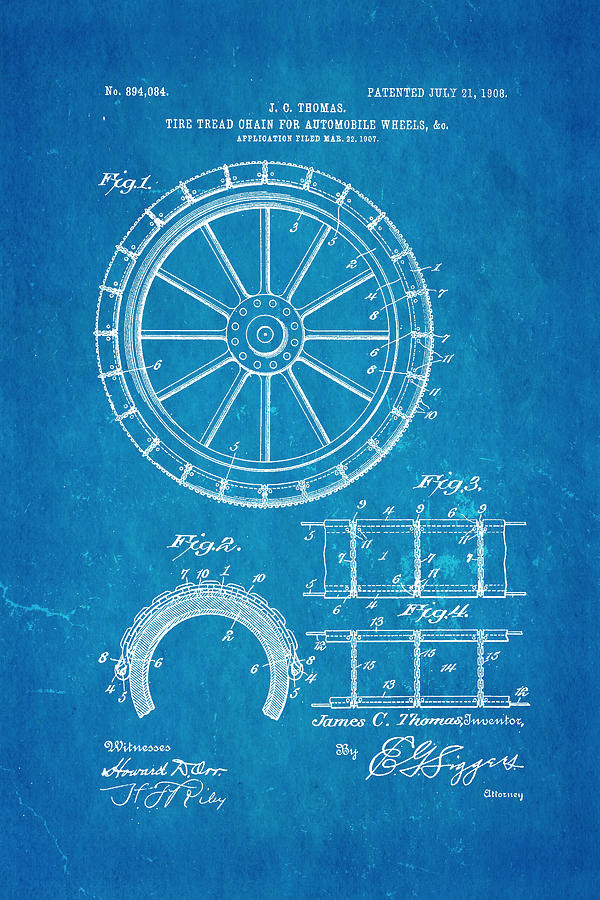

Wheel
An abstraction based on circle with some known physical properties
Based on wheel and perhaps could have an instance.

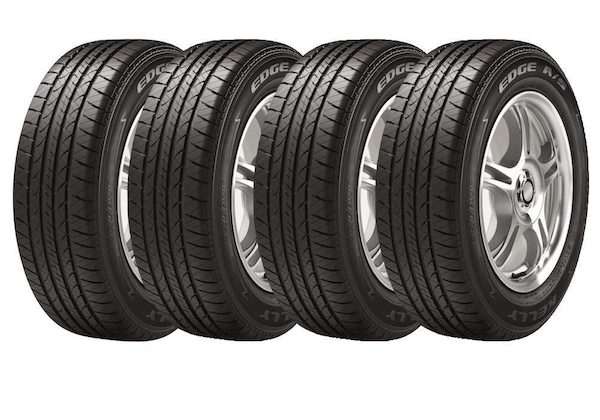

Goodyear Tire
What does this give us?
Objects MisBehaving
let shape = 5
let shape = new Triangle()
shape.draw()
Abstract Objects
class Square extends Shape {
String draw() {
return "Square";
}
}
class Triangle extends Shape {
String draw() {
return "Triangle";
}
}
abstract class Shape {
abstract String draw();
}
void showEveryone(final Shape shape) {
println(shape.draw());
}
int main() {
showEveryone(new Square());
showEveryone(new Triangle());
}
Abstract means you can't create an instance
That's some opinion!
Keep it focussed on the project.
you can always extend it to add functionality!
or can you?....
Sealed && Final
C# and Java
That can be a pretty big decision
Static Typed Languages
Static Type Checking
Name some static typed languages?
Dynamic languages?
Destructor methods?
Interfaces
Enforcing common ground
Whatever you do, you must implement .draw
Interfaces vs Abstract
Examples
https://github.com/GantMan/furry_destroyer
https://github.com/IconoclastLabs/rubytrivia
Call to Action!
Where can you practice these skills?
Closing up
Final Remarks + Survey
OOP intro
By Gant Laborde
OOP intro
Introducing Object Oriented Programming
